Ultrasonic Magnetic Vortex Flow Meter Manufacturer, Sure We Are, Sure To Be Better | ✉ overseas@suremeter.com
Place of Origin: Tianjin, China
Brand Name: Sure Instrument
Accuracy: ±0.2%; ±0.5%
Velocity: 0.3-10m/s
Ambient Temp.: -20 - +60oC
Relative humidity: 5%-95%
Signal output: 4-20mA, Pulse and Modbus RS485
MOQ: 1set
Payment: T/T, LC, PayPal, West Union
Standard Lead Time: 7-10 working days
Shipment: FedEx, DHL, Airline, Sea and others
Package Details: Carton and Wooden
Description

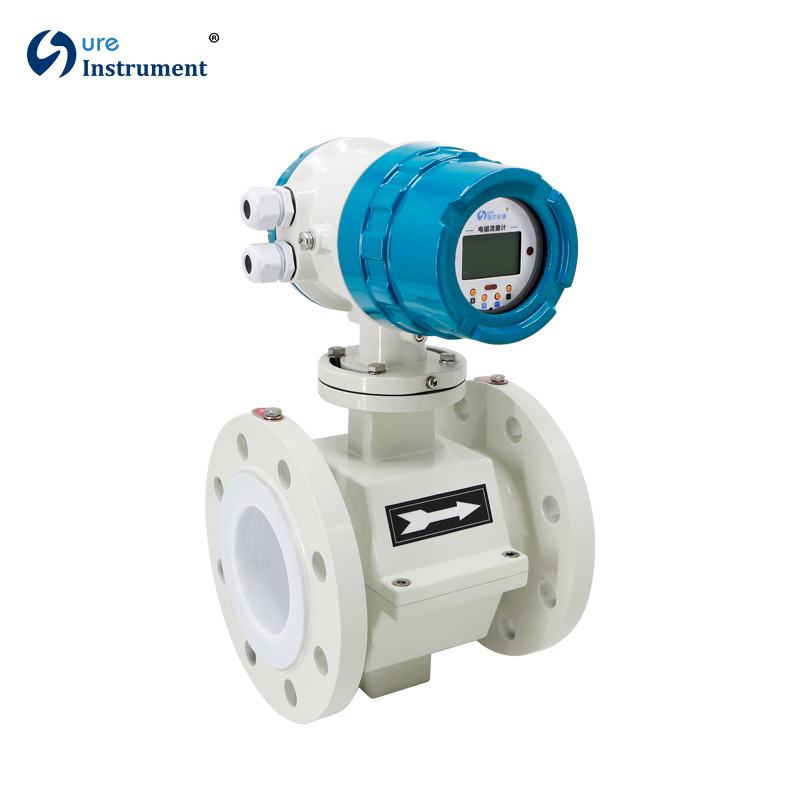

The magnetic flow meter is one of the most flexible and universally applicable flow measurement systems available.
It is a velocity flow meter which does not have any moving parts and is ideal for waste water applications or any dirty liquid which is conductive or water based.
Magnetic flow meter is also ideal for the applications where low pressuredrop and low maintenance are required.
Operating Principle
Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field.
In the electromagnetic measuring principle, the following medium is the moving conductor The voltage induced is proportional to the flow velocity and is upplied to the amplifier by means of two measuring electrodes.
The flow volume is calculated by means of the pipe cross section area.
APPLICATION
-Waster water industry: transport networks sewage treatment plants, sludges
-Chemical industry: acids alkalis, dosing applications, abrasive or corrosive mediums
-Metal & mining industry: mediums with a high solid content, like ore or excavator mud
-Water industry: Revenue metering, district metering waterabstraction, leakage detection
-Pulp & paper industry: pulp, pastes, sludges & other caustic mediums, liquor, additives, bleaches, colourants
-Food & beverage industry: mixing, dosing and filling of drinks under hygienic conditions filling systems applications
Certificates | IS09001:200; CE |
Diameter | PTFE:DN6-DN600 Hard ruber: ON50-DN2200 Sanitary Type: DN10-DN100; Insertion Type: DN200-DN3000 |
Flow Direction | Positive; Negative |
Repeatability Error | ±0.1% |
Accuracy | ±0.5% of rate; ±0.2% of rate |
Medium Temperature | Hard rubber liner:-20 ...+60℃ High-temp rubber liner:-20…+90℃ PTFE liner: -20…+120℃ High-temp PTFE liner: -2O...+ 16O℃ PFA: -20 …+180℃ |
Nominal WorkingPressure | DN10-DN25≤M4.0Mpa DN32-DN150≤l.6Mpa DN200-DN60≤1.0Mpa DN700-DN2200≤0.6Mpa |
Velocity | 0.3-10m/s |
Ambient Temperature | -20 …+60 *C |
Relative Humidity | 95% |
Comsumed Power | <20W |
Model | Suffix Code | Description | |||||||
LDG- | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Electromagnetic Flowmeter |
Type | B |
|
|
|
|
|
|
| Btyps |
T |
|
|
|
|
|
|
| T type( DN15- DNIOOonly) | |
F |
|
|
|
|
|
|
| Ftype | |
Y |
|
|
|
|
|
|
| Y type | |
Diameter | XXXX |
|
|
|
|
|
|
| Stand for diameter |
Structure | S |
|
|
|
|
|
|
| Compact Type with local display |
L |
|
|
|
|
|
|
| Remote Type; 10 meters cable default | |
Electrode Material | M |
|
|
|
|
|
|
| SS316L |
T |
|
|
|
|
|
|
| Titanium | |
D |
|
|
|
|
|
|
| Tantalum | |
H |
|
|
|
|
|
|
| Hastelloy AlloyC | |
P |
|
|
|
|
|
|
| Platinum-lridlum | |
Signal Output | 0 |
|
|
|
|
|
| No Output | |
1 |
|
|
|
|
|
| 4-20mA / Pulse | ||
Liner Material | X |
|
|
|
|
| Hard Rubber | ||
p |
|
|
|
|
| Propylene Oxide | |||
F |
|
|
|
|
| PTFE | |||
A |
|
|
|
|
| PFA | |||
Power Supply | -0 |
|
|
|
| 110-240VAC | |||
-1 |
|
|
|
| 24V DC (20-36V DC) | ||||
-2 |
|
|
|
| Battery Power Supply | ||||
Communication | 0 |
|
|
| No Communication | ||||
1 |
|
|
| ModbusRS485 | |||||
2 |
|
|
| HART | |||||
3 |
|
|
| GPRS | |||||
4 |
|
|
| ProfibusDP | |||||
SensorGrounding | 0 |
|
| No Grounding | |||||
1 |
|
| Grounding Ring | ||||||
2 |
|
| Grounding Electrode | ||||||
Connection | DXX |
| D16:DIN PN16 Flange; D25: DIN PN25 Flange. | ||||||
AXX |
| A15: ANSI150# Flange; A30: ANSI 300# Flange. | |||||||
JXX |
| J10: JIS 10K Flange; J20: JIS20K Flange. | |||||||
XXX |
| On request | |||||||
Body Material | Cs | Carbon Steel |
Model | Stuffix Code | Description | |||||||||
LDGS- | 1 | 2 | 3 | 4 | 5 | -6 | 7 | 8 | 9 | 11 | Sanitary Magnetic Flowmeter |
Diameter | xxxx |
|
|
|
|
|
|
|
|
| Stand for diameter |
Structure | S |
|
|
|
|
|
|
|
| Compact type with local display | |
L |
|
|
|
|
|
|
|
| Remote Type: 10 meters cable default | ||
Electrode Material | M |
|
|
|
|
|
|
| SS316L | ||
T |
|
|
|
|
|
|
| Titanium | |||
D |
|
|
|
|
|
|
| Tantalum | |||
H |
|
|
|
|
|
|
| Hastelloy Alloy C | |||
P |
|
|
|
|
|
|
| Platinum-Iridium | |||
Signal Output | 0 |
|
|
|
|
|
| No Output | |||
1 |
|
|
|
|
|
| 4-20mA / Pulse | ||||
Liner Material | F |
|
|
|
|
| PTFE | ||||
A |
|
|
|
|
| PFA | |||||
Power Supply | 0 |
|
|
|
| 110-240V AC | |||||
-1 |
|
|
|
| 24V DC | ||||||
-2 |
|
|
|
| Battary Power Supply | ||||||
Communication | 0 |
|
|
| No Communication | ||||||
1 |
|
|
| Modbus RS485 | |||||||
2 |
|
|
| HART | |||||||
3 |
|
|
| GPRS | |||||||
4 |
|
|
| Profibus-DP | |||||||
Sensor Grounding | 0 |
|
| No Grounding | |||||||
1 |
|
| Grounding Ring | ||||||||
2 |
|
| Grounding Electrode | ||||||||
Connection |
|
|
|
|
|
|
|
| TRC |
| Tri-clamp for sanitary connection |
Body Material |
|
|
|
|
|
|
|
|
| S4 | Stainless Steel 304 |
Model Selection
Model | Suffix Code |
|
| Description | ||||
LDGC- | ① | ② | ③ | ④ | -⑤ | ⑥ | ⑦ | Insertion Magnetic Flowmeter |
Diameter | ×××× |
|
|
|
|
|
| Stand for diameter |
Structure | S |
|
|
|
|
| Compact type with local display | |
L |
|
|
|
|
| Remote type with 10 meters cable | ||
Electrode Material | M |
|
|
|
| SS316L | ||
T |
|
|
|
| Titanium | |||
D |
|
|
|
| Tantalium | |||
H |
|
|
|
| Hastelloy Alloy C | |||
P |
|
|
|
| Platinum-Iridium | |||
Signal output | 0 |
|
|
| No Output | |||
1 |
|
|
| 4-20mA / Pulse | ||||
Power Supply | -0 |
|
| 110-240V AC | ||||
-1 |
|
| 24V DC (20-36V DC) | |||||
-2 |
|
| Battery Power Supply | |||||
Communication | 0 |
| No Communication | |||||
1 |
| Modbus RS485 | ||||||
2 |
| Hart | ||||||
3 |
| GPRS | ||||||
4 |
| Profibus DP | ||||||
Connection | S | Simple Type | ||||||
B | Ball Valve Type |
